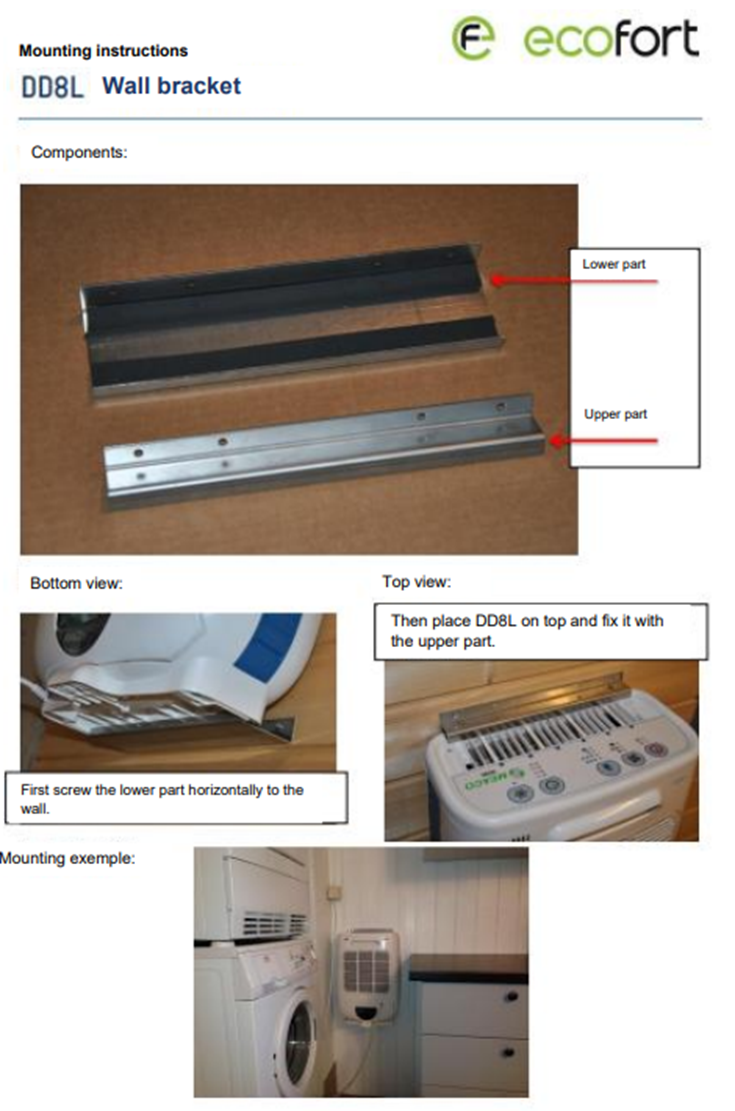

This illustration shows you how the wall bracket for the Meaco DD8L is arranged.
The mounting holes may need to be pre-drilled into the wall. To do this, first hold the lower part of the bracket horizontally against the wall, mark the holes and drill them. Screw on the lower bracket and place the Meaco DD8L on it to determine the position of the upper bracket and mark the holes for it. Then drill the upper mounting holes. The Meaco DD8L must then be screwed on together with the upper bracket.
Use the appropriate wall plug / screw combination for your wall. For wooden walls, we recommend using 4x20 mm wood screws.
If you have any other questions, please do not hesitate to write us a message: ecofort send a message.
